Description
ISI Certified Solvent Welding Compound
Low VOC
Excellent Strength
Can sustain high pressure
Regular Bodied UPVC S. W. Compound
Safe for Portable Water

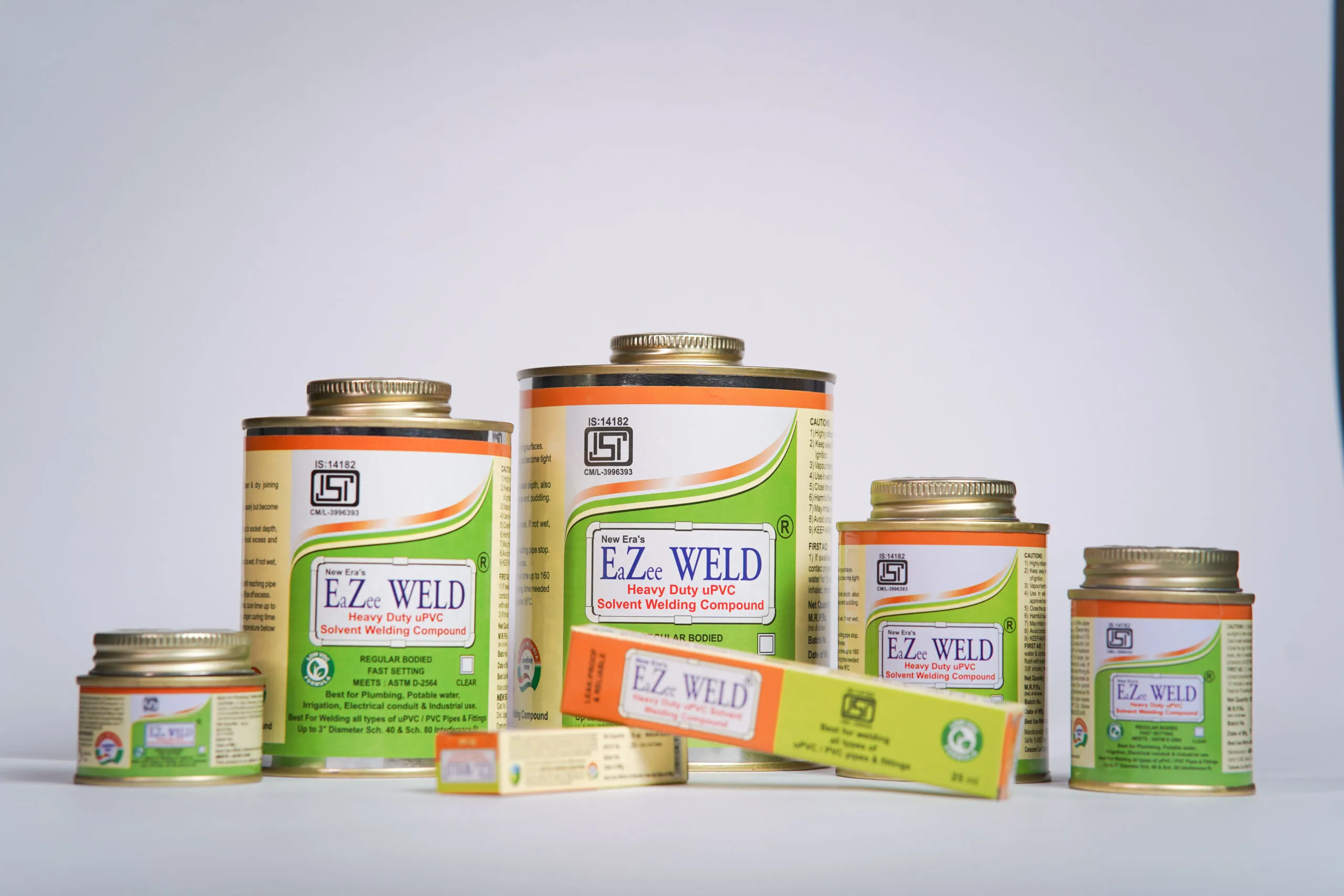

Find the Right Size for Every Application

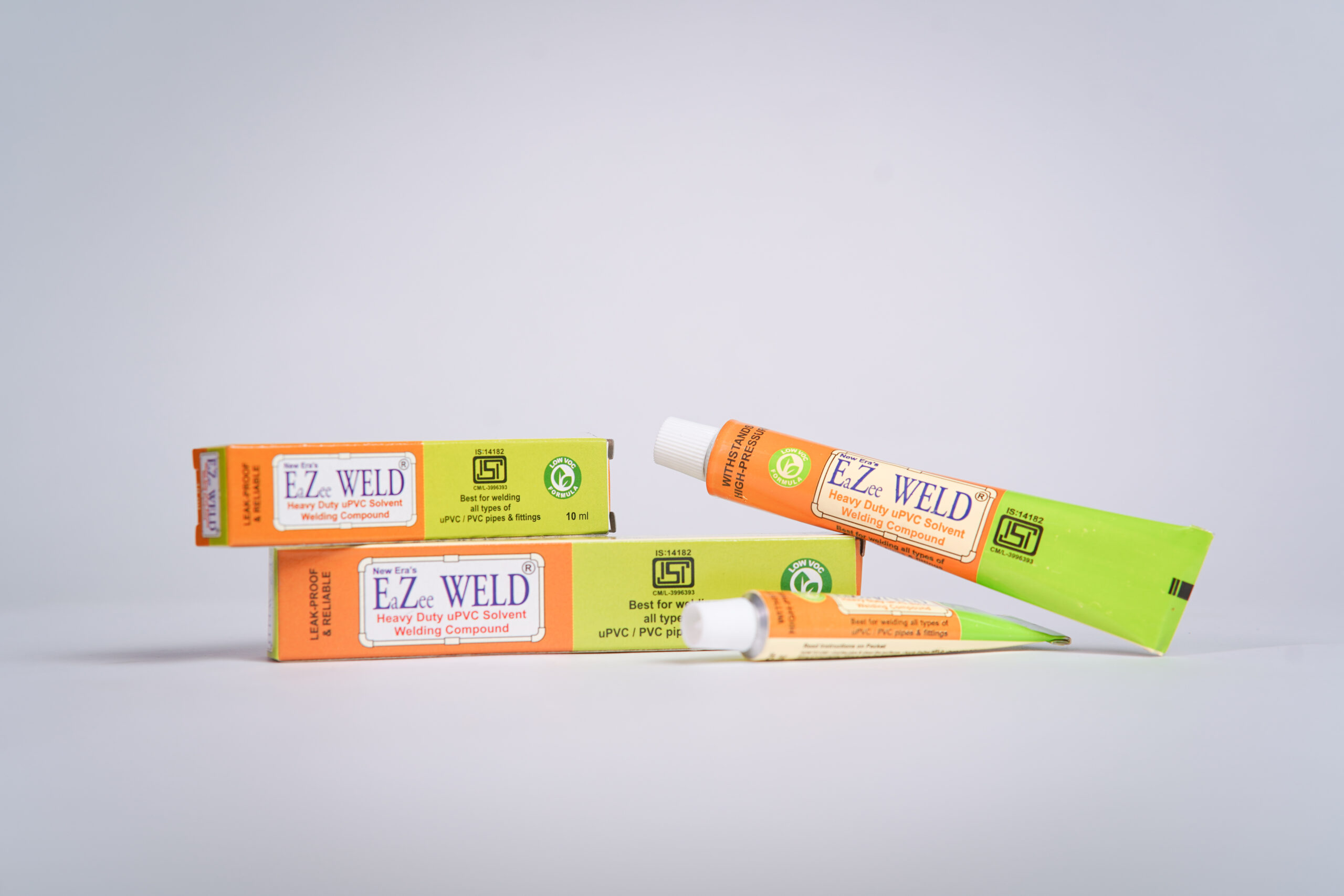

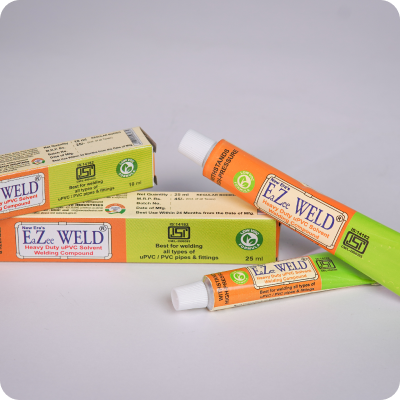

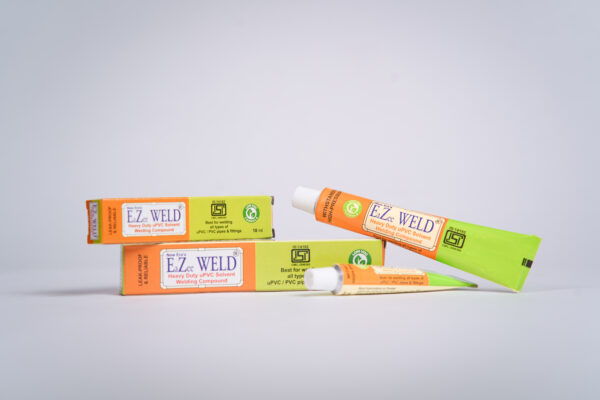

Tube
10ml To 25ml
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.

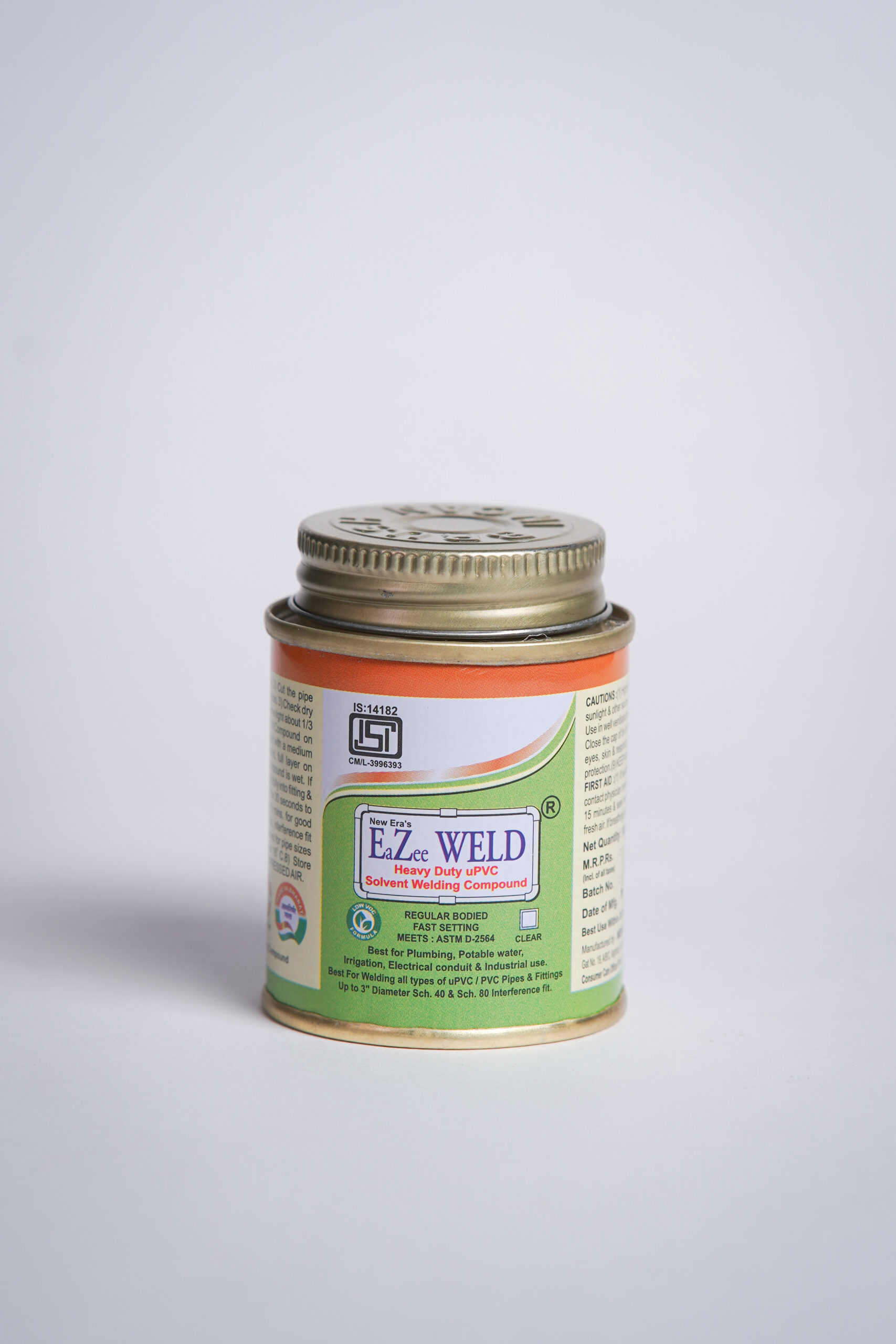

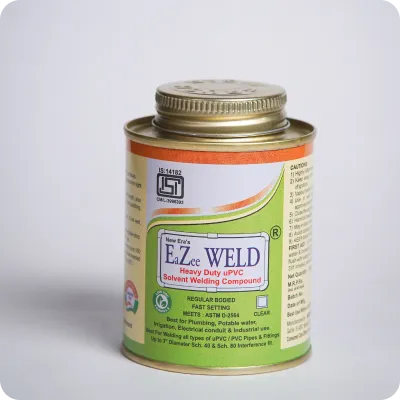

Metal Tin
50ml To 1Ltr
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.
Technical Specifications
| PROPERTY | VALUES |
|---|---|
| Colour | Transparent |
| Resin content | 12.8% |
| Viscosity | 220 mPa.s (25°C) |
| Lap shear strength* (@ 25°C After 2 hours ) | 4.5 Mpa |
| Hydrostatic burst Strength* (@ 25°C{After 2 hours) | 4.9 Mpa |
How to Apply
Stir or Shake well before use. 2) Cut the pipe square & remove all burrs. Clean & dry joining surfaces. 3) Check dry fit of pipe & fitting. Pipe should go in easily but become tight about 1/3 to 2/3 of the way into fitting.
Apply even coat of S.W.Compound on pipe up to socket depth, also coat the fitting socket with a medium layer. Avoid excess and puddling. Apply a second, full layer on pipe. 5) Assemble parts quickly, while the S.W.Compound is wet. If not wet, recoat parts before assembly. 6) Push pipe fully into fitting & twist 1/8 to 1/4 turn until reaching pipe stop. Hold for 30 seconds to prevent pipe push-out. Wipe off excess.
7) Allow 5 mins. for good handling strength & 30 mins. cure time up to 160 psi, interference fit up to 2" at 16°C & above. Longer curing time needed for pipe sizes over 2", higher pressure, or temperature below 16°C. 8) Store between 5°C & 44°C. 9) DO NOT TEST WITH COMPRESSED AIR.
IS:14182 Certified And Brand Name Registered
